Parameters
Parameters

Table of product parameters

Model Voltage Medium Flow Current Max pressure Noise
BPW27 DC 12.0V

Water

(5-60°C)

 600±10%ml/min <240mA >1.0Bar <55dB
800±10%ml/min <280mA >1.5Bar <55dB
1100±10%ml/min <350mA >2.0Bar <60dB
DC 24.0V 600±10%ml/min <160mA >1.0Bar <55dB
800±10%ml/min <180mA >1.5Bar <55dB
1100±10%ml/min <200mA >2.0Bar <60dB



Other parameters

Life test:

No load pumping at room temperature (water inlet and outlet height not exceeding 30cm)

on/1min off/min 20,000 times continuous operation, product performance fluctuates by no more than 20%

Environment of use：

0~50°C，0~75%RH

 Customised pump characteristics available on request

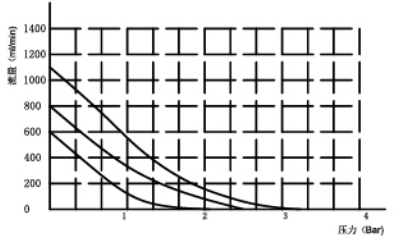

Performance curve

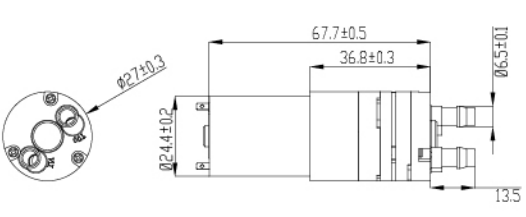

Dimension drawing

Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table
