BPW27 Series

BPW27 Series
Category: Micro pump
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Sales Phone: +86-551-65708068 Sales Phone: +86-551-65337471
1
Parameters
Parameters

Table of product parameters

Model Voltage Media Flow Current Max pressure Noise
BPW27 DC 12.0V

Water

(5-100°C)

450±10%ml/min <150mA >0.5Bar <50dB
600±10%ml/min <240mA >1.0Bar <55dB
700±10%ml/min <280mA >1.5Bar <55dB
DC 24.0V 450±10%ml/min <130mA >1.0Bar <50dB
600±10%ml/min <160mA >1.5Bar <55dB
700±10%ml/min <200mA >2.0Bar <55dB



Other parameters

Life test:

No load pumping at room temperature (water inlet and outlet height not exceeding 30cm)

on/1min off/min 20,000 times continuous operation, product performance fluctuates by no more than 20%

Environment of use:

0~50°C,0~75%RH

Customised pump characteristics available on request



Performance curve

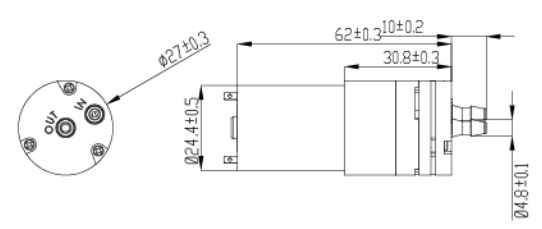

Dimension drawing
