BPW27 Series

BPW27 Series
Category: Micro pump
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Category
Message
Contact
Sales Phone: +86-551-65708068 Sales Phone: +86-551-65337471
1
成果展示 企业文化
Parameters
Parameters

Table of product parameters

Model Voltage Media Flow Current Max pressure Noise
BPW27 DC 12.0V

Water

(5-60°C)

 600±10%ml/min <200mA >0.5Bar <50dB
800±10%ml/min <260mA >1.0Bar <55dB
1000±10%ml/min <320mA >1.5Bar <55dB
DC 24.0V 600±10%ml/min <100mA >0.5Bar <50dB
800±10%ml/min <120mA >1.0Bar <55dB
1000±10%ml/min <160mA >1.5Bar <55dB



Other parameters

Life test:

No load pumping at room temperature (water inlet and outlet height not exceeding 30cm)

on/1min off/min 20,000 times continuous operation, product performance fluctuates by no more than 20%

Environment of use：

0~50°C，0~75%RH

 Customised pump characteristics available on request

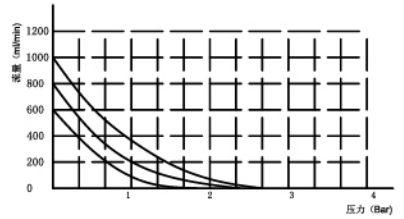

Performance curve

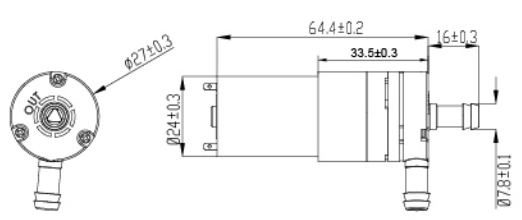

Dimension drawing
