BPW36 Series
Table of product parameters
Model | Voltage | Media | Flow | Current | Max pressure | Noise |
BPW36 | DC 12.0V |
Water (5-60°C) |
600±3%ml/min | <400mA | >0.5Bar | <55dB |
800±3%ml/min | <600mA | >1.0Bar | <60dB | |||
DC 24.0V | 600±3%ml/min | <200mA | >1.0Bar | <55dB | ||
800±3%ml/min | <300mA | >1.5Bar | <60dB | |||
Other parameters
Life test: No load pumping at room temperature (water inlet and outlet height not exceeding 30cm) on/1min off/min 20,000 times continuous operation, product performance fluctuates by no more than 20% |
Environment of use: 0~50°C,0~75%RH |
Customised pump characteristics available on request |

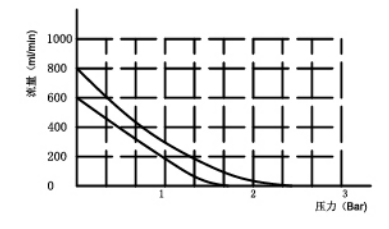

Performance curve

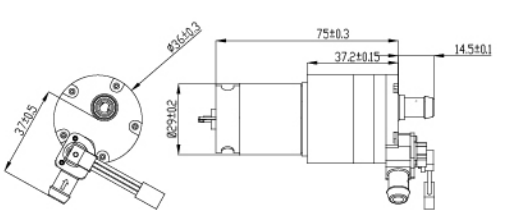

Dimension drawing
Keywords: Household membrane components, industrial membranes, RO pumps, micropumps
