BPW36 Series

BPW36 Series
Category: Micro pump
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Sales Phone: +86-551-65708068 Sales Phone: +86-551-65337471
1
Parameters
Parameters

Table of product parameters

Model Voltage Media Flow Current Max pressure Noise
BPW36 DC 12.0V

Water

(5-60°C)

1600±10%ml/min <500mA >1.0Bar <55dB
2000±10%ml/min <800mA >1.5Bar <60dB
DC 24.0V 1600±10%ml/min <30mA >1.0Bar <55dB
2000±10%ml/min <450mA >1.5Bar <60dB



Other parameters

Life test:

No load pumping at room temperature (water inlet and outlet height not exceeding 30cm)

on/1min off/min 20,000 times continuous operation, product performance fluctuates by no more than 20%

Environment of use:

0~50°C,0~75%RH

Customised pump characteristics available on request

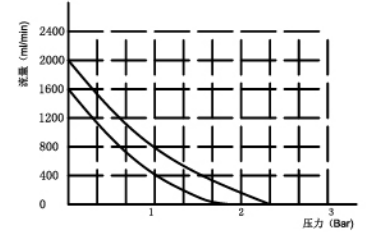

Performance curve

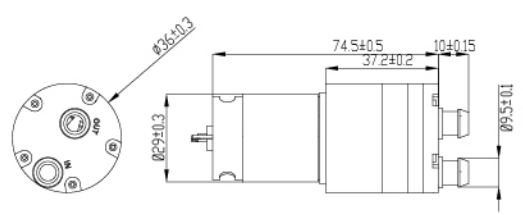

Dimension drawing

Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table

Keywords: Household membrane components, industrial membranes, RO pumps, micropumps
