BPW27 Series

BPW27 Series

Category:

Table of product parameters

Model Voltage Medium Flow Current Max pressure Noise
BPW27 DC 12.0V

Water

(5-100°C)

800±10%ml/min <150mA >0.5Bar <50dB
1000±10%ml/min <240mA >1.0Bar <55dB
1200±10%ml/min <280mA >1.5Bar <55dB
1400±10%ml/min <450mA >2.0Bar <60dB
DC 24.0V 800±10%ml/min <100mA >0.5Bar <50dB
1000±10%ml/min <120mA >1.0Bar <55dB
1200±10%ml/min <180mA >1.5Bar <55dB
1400±10%ml/min <250mA >2.0Bar <60dB



Other parameters

Life test:

No load pumping at room temperature (water inlet and outlet height not exceeding 30cm)

on/1min off/min 20,000 times continuous operation, product performance fluctuates by no more than 20%

Environment of use:

0~50°C,0~75%RH

Customised pump characteristics available on request

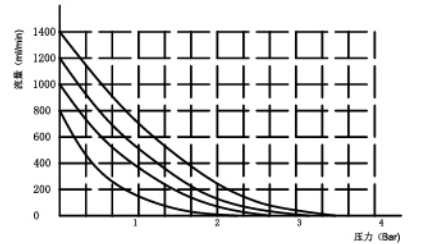

Performance curve

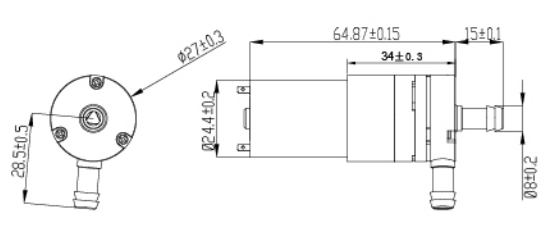

Dimension drawing
