Custom-sized membrane elements
Size parameter table of Zhihong purification membrane components
Category:

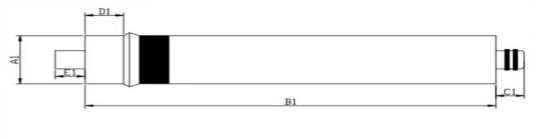

Size parameter table of Zhihong purification membrane components | |||||
![]() |
|||||
Model | A1 | B1 | C1 | D1 | E1 |
RE-1812-75 | 43.5 | 256 | 21 | 20 | 21 |
RE-2012-100 | 46.5 | 256 | 21 | 20 | 21 |
RE-1812-100 | 45.5 | 256 | 21 | 20 | 21 |
RE-2012-150 | 46.5 | 263 | 20 | 20 | 15 |
RE-2512-200/300 | 62.5 | 256 | 21 | 20 | 21 |
RE-2812-400 | 67.5 | 256 | 21 | 20 | 21 |
RE-3012-500 | 74 | 256 | 21 | 20 | 21 |
RE-3013-600/800 | 76 | 295 | 20 | 20 | 18 |
RE-3313-1000/1200 | 85 | 295 | 20 | 20 | 18 |
1.This parameter table is a reference table for the specifications and dimensions of Zhihong purification membrane components. Special size products can be customized according to customer requirements. | |||||
2、Due to the special processing characteristics of this product, there may be dimensional deviations, with deviations not exceeding ± 0.5mm. |

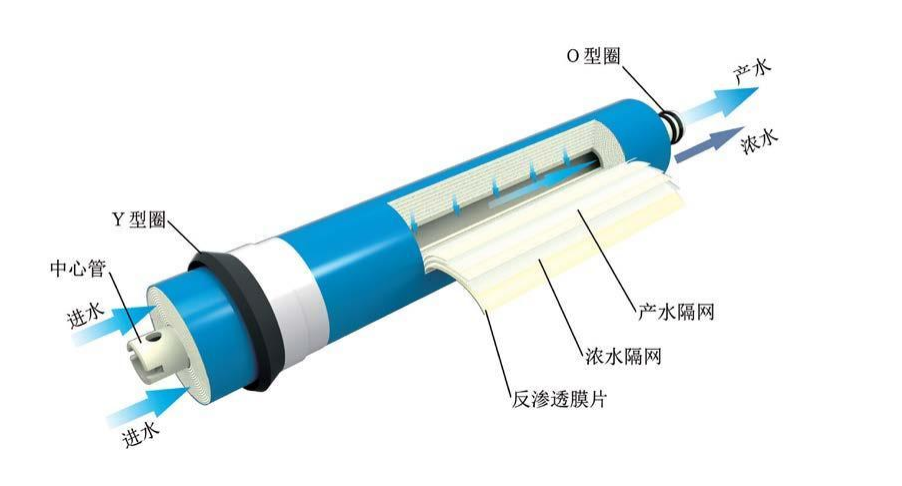

Source Water sectional view of membrane components
Based on the advanced membrane component design and manufacturing technology of Source Water, we can mass produce customized size membrane components for customers.
Customizable flux range:50GPD-1600GPD
Customizable size .
Diameter Range:35mm-90mm
Length range: 180mm-333mm
keywords: Household membrane elements, industrial membranes, RO pumps, micro pumps
